Things needed for this project:

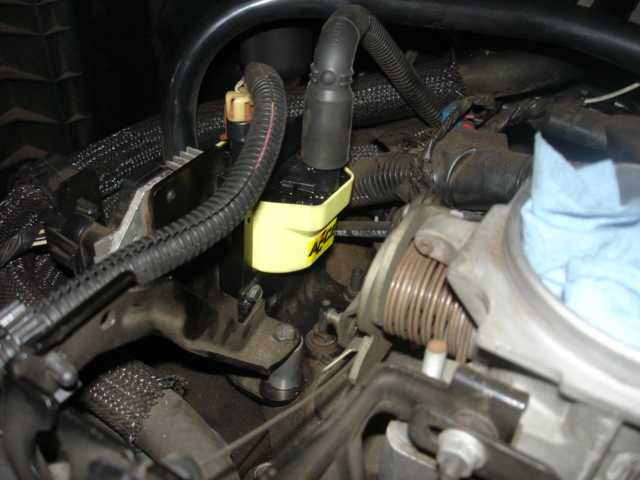

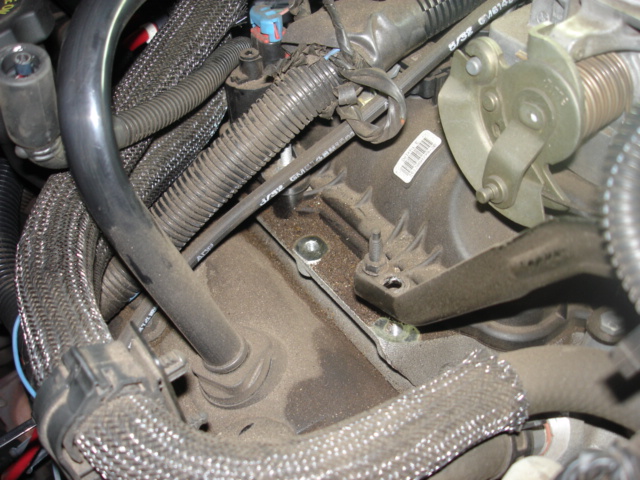

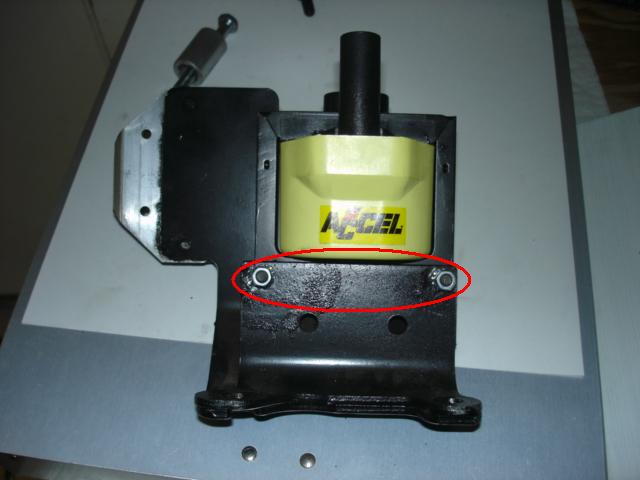

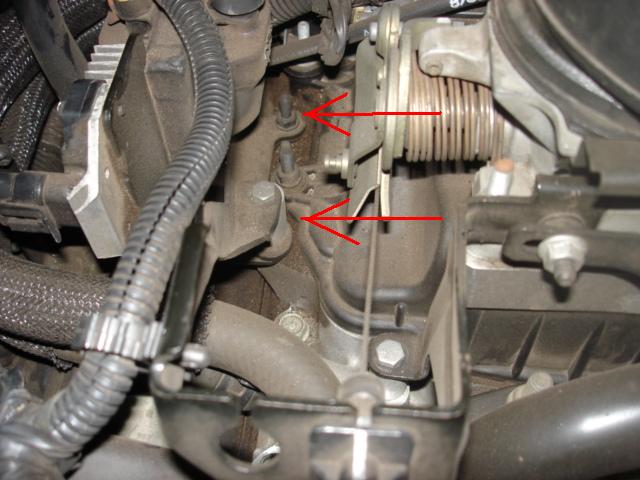

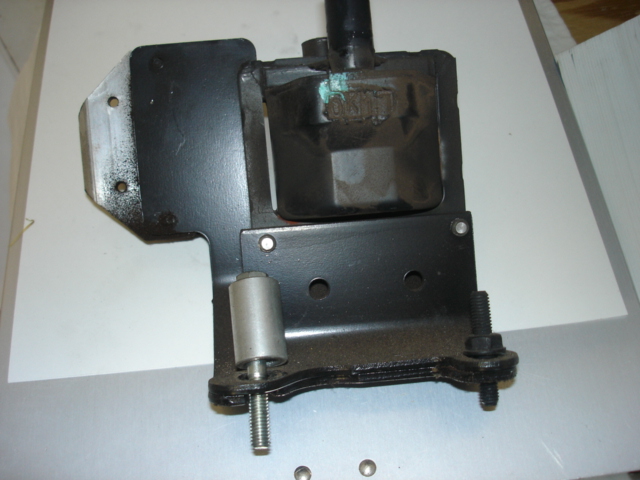

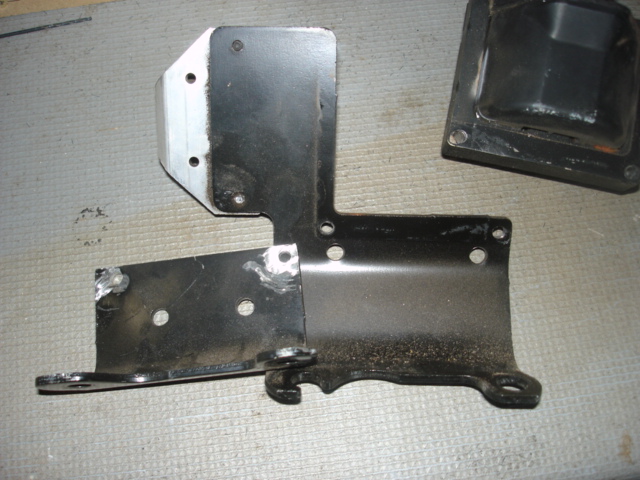

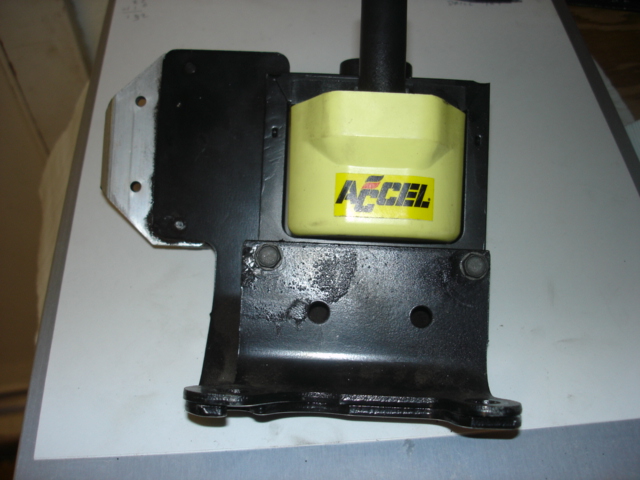

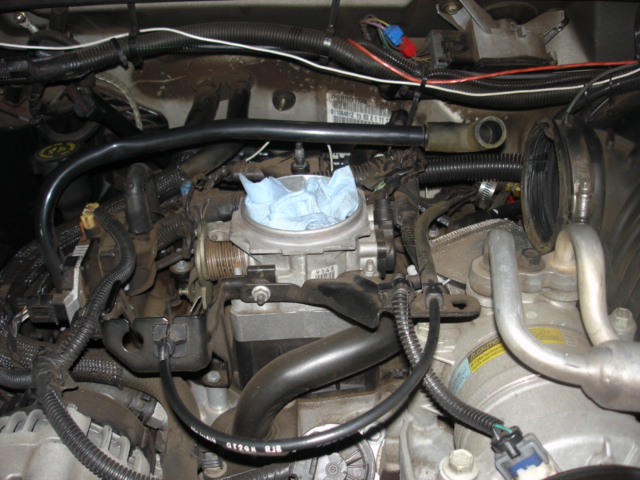

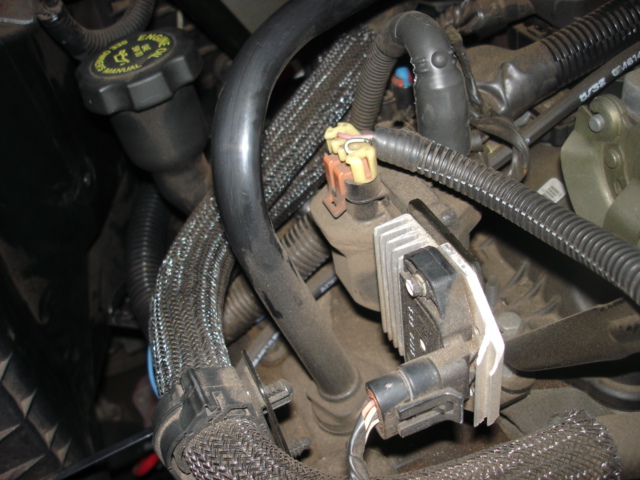

•10mm deep socket •Drill with 11/64 drill bit •Flathead Screwdriver •New coil(Accel Super Coil #140024 or MSD #8231) Stock Coil:  1) Remove air assembly on top of throttlebody so it looks like this:  2a) Remove the electrical connections and Coil wire. Using the 10mm deep socket remove the bolt and stud holding the bracket to the intake manifold:  2b) Heres what the intake manifold should look like(except for the dirtiness):  2c) and what the stock coil assembly looks like:  3) Next is to drill out the 2 rivets holding the coil to the bracket until you get this:  4a) Assemble with new coil to the bracket making sure to install the screw from the coil wire side and the nut on the other side:  4b) Below is the wrong way becasue the screw will hit the throttle body bracket when putting it back on the truck making it almost impossible to install:  5) Almost there! Just install the bracket to the manifold, the connectors, coil wire and air assembly.  --------------------  Hoku: Lian Li PC60 case; Antec TruePower 550; Abit IC7-G; 2.4C @ 3.0GHZ w/5:4 divider; Mushkin 256MB PC3500 Level II(x2)@ 2-2-2-5;Leadtek A250/ti4400 @303Core/654Memmory; Audigy Platinum; WD Raptor Dragon: Antec SLK3700AMB Case; Antec SmartPower 350; Soyo P4X400 DRAGON Ultra Platinum; P4 2.53GHZ; Corsair 512MB PC3200C2PT; ATI Radeon 7000; Audigy 2; LEADTEK TV2000XP; WD800JB(x2) in RAID 0 Both on: Envision 985e 19" CRT; Logitech Z680; IOGEAR MiniView Micro 2 KVM Switch  |

|
 |
|
