First off this is for a 2001 Chevy S10 4.3L. Im sure this can be applied to all kinds of vehicles.

1) Remove the stock airbox from truck:

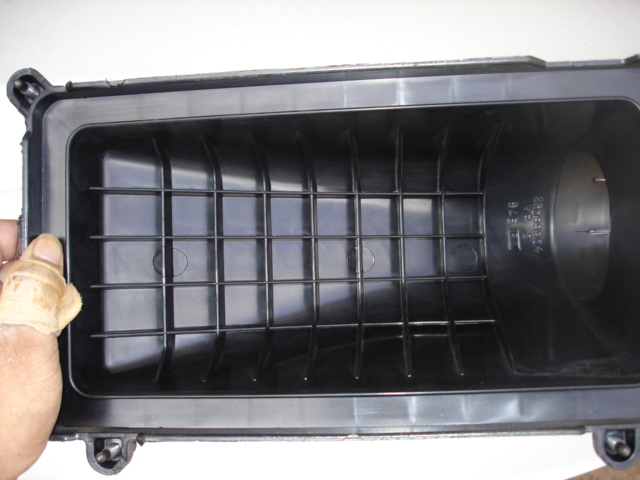

•Top section-stock
user posted image

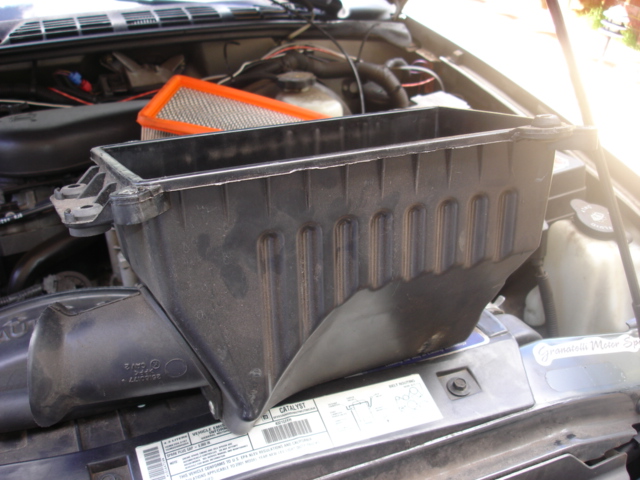

•Bottom section-stock
user posted image

2) There are a bunch of checker grids(see above pic) in the top lid that needs to be smoothed down.

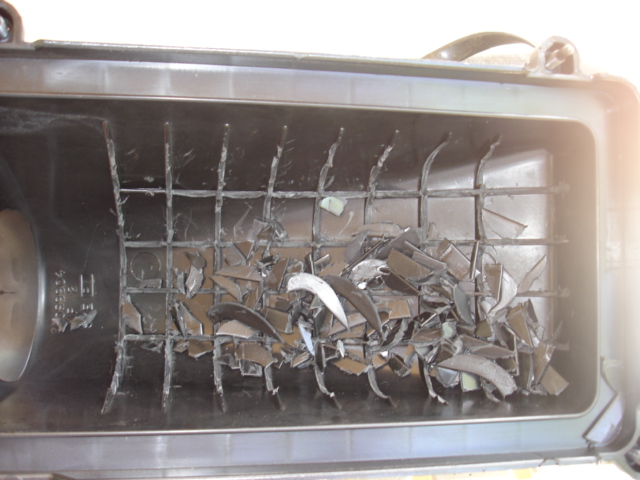

a)I first used a cutting plier to get most of the stuff out:
user posted image

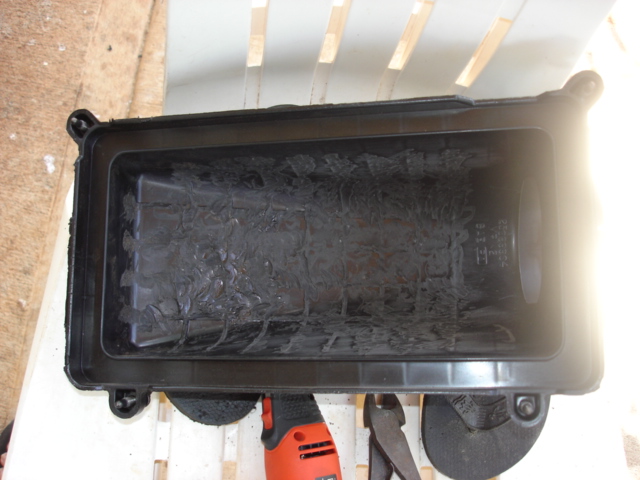

b)Then I used a dremel tool to get everything as smooth as possible. You can see the completed top section below:
user posted image

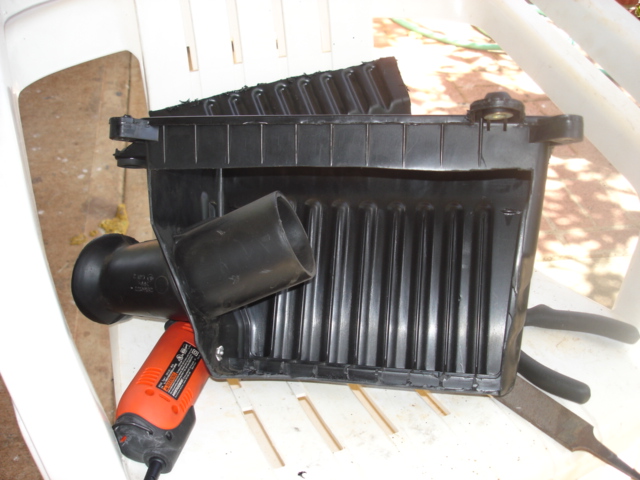

3) Now with the bottom section. Use the dremmel and cut the left side section out.
user posted image

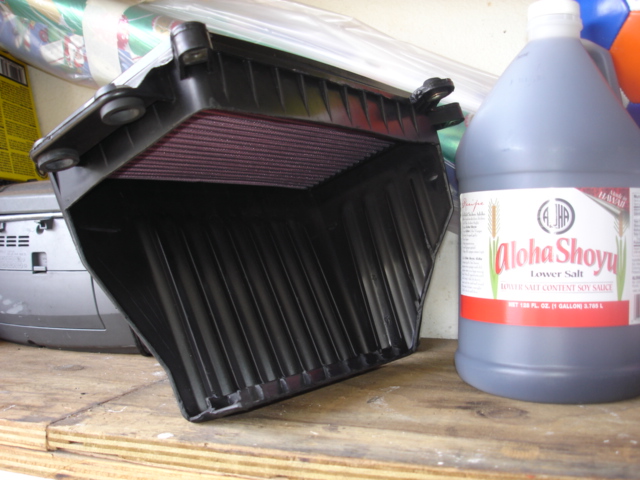

If you like you can also cutout the front wall or even all walls, though I think its best if you leave the walls toward the engine itself intact:
user posted image

4) Next is to put everything back together, drop in a K&N Filter element #33-2042 and youre good to go! Did some driving and this thing sounds exactly like I put on a cone filter. As for performance I cant tell if it improved or not.


--------------------
